The reaction of vitamin D3 (I) with Ts-Cl in pyridine gives the tosylate (II), which is treated with NaHCO3 in hot methanol to yield 3,5-cyclovitamin D3 (III). The oxidation of (III) with SeO2 and tBu-OOH in dichloromethane, followed by acetylation affords 1-alpha-acetoxy-25-hydroxy-3,5-cyclovitamin D3 (IV). The dihydroxylation of the exo-double bond of (IV) with OsO4 in pyridine affords the alpha diol (V), which is oxidized with NaIO4 in methanol to provide the oxo cyclovitamin (VI). The reduction of (VI) with NaBH4 in ethanol gives the secondary alcohol (VII), which is mesylated with Ms-Cl and TEA in dichloromethane to yield the mesylate (VIII). The crude (VIII) is treated with LiAlH4 in THF to afford 1-alpha,25-dihydroxy-3,5-cyclovitamin D3 (IX). The cycloreversion of (IX) by means of hot acetic acid provides a mixture of the two monoacetylated vitamins (X) and (XI), which, without separation is hydrolyzed with KOH in methanol/ethyl ether to give the target 1-alpha,25-dihydroxy-19-nor-vitamin D3.
The 25-hydroxyvitamin D2 (I) is converted into the cyclovitamin D2 acetate (II) according to known methods. The dihydroxylation of the methylene group of (II) with OsO4 in pyridine gives vicinal diol (III), which is oxidized with NaIO4 yielding the ketonic cyclovitamin (IV). The reduction of the ketonic group of (IV) with NaBH4 in ethanol/water affords the corresponding hydroxy derivative (V), which is treated with mesyl chloride and triethylamine to give the mesylate (VI). The reduction of (VI) with LiAlH4 in THF yields the 19-nor-cyclovitamin D (VII), which is treated with hot acetic acid to afford both monoacetates (VIII) and (IX), separated by HPLC. Finally, both monoacetates (VIII) and (IX) are hydrolyzed with KOH in methanol.

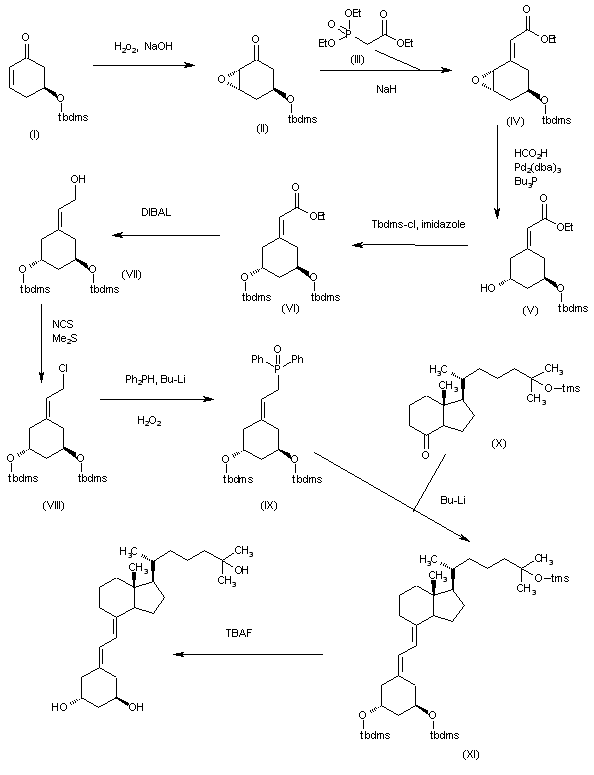

The epoxidation of the chiral cyclohexenone (I) with H2O2 and NaOH in methanol gives the epoxide (II), which is condensed with triethyl phosphonoacetate (III) by means of NaH in THF to yield the cyclohexylidene acetate (IV). The regioselective opening of the epoxide ring of (V) by means of formic acid, Pd2(dba)3 and Bu3P in chloroform affords the cyclohexanol derivative (V), which is silylated by means of Tbdms-Cl and imidazole to provide the fully silylated compound (VI). The reduction of the ester group of (VI) by means of DIBAL in toluene gives the primary alcohol (VII) (1), which is treated with NCS and Me2S in dichloromethane to yield the chloride compound (VIII). The reaction of (VIII) with lithium diphenylphosphide, followed by oxidation with H2O2 affords the phosphine oxide (IX), which is condensed with the known synthon (X) by means of BuLi in THF to provide the silylated precursor (XI). Finally, this compound is desilylated by means of TBAF in THF to afford the target 1-alpha,25-dihydroxy-19-nor-vitamin D3.

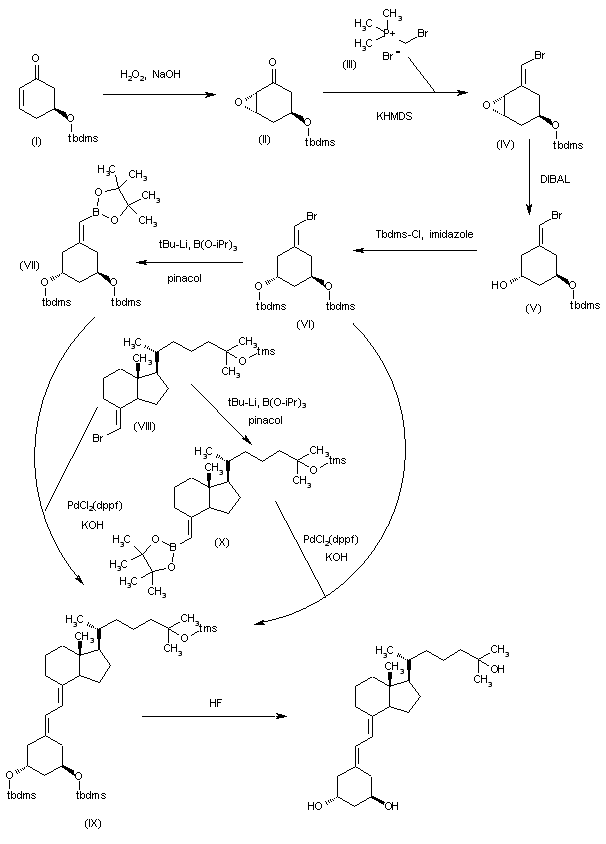

The reaction of the chiral cyclohexenone (I) with H2O2 and NaOH in methanol gives the epoxide (II), which is submitted to a Wittig olefination with the phosphonium bromide (III) and KHMDS in toluene to yield the bromomethylene derivative (IV). The opening of the epoxide ring by means of DIBAL in hexane affords the cyclohexanol (V), which is silylated with Tbdms-Cl and imidazole to provide the bis silyl ether (VI). The reaction of (VI), triisopropyl borate and pinacol by means of t-BuLi in ethyl ether gives the boronic ester (VII), which is condensed with alkyl bromide intermediate (VIII) and catalyzed by PdCl2(dppf) and KOH in THF/water to yield the silylated precursor (IX). Finally, this compound is desilylated by means of aq. HF in THF to provide the target 1-alpha,25-dihydroxy-19-nor-vitamin D3. Alternatively, the intermediate (VIII) is reacted with triisiopropyl borate and pinacol, as before, to give the boronic ester (X), which is condensed with the cyclohexylidenemethyl bromide (VI) and catalyzed by PdCl2(dppf) and KOH in THF/water to yield the already reported silylated precursor (IX).

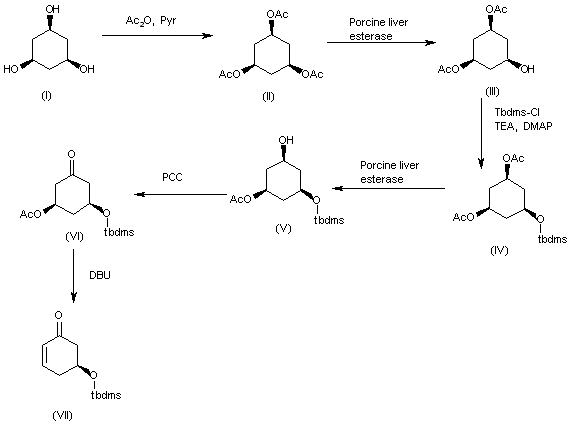

The reaction of cis,cis-cyclohexane-1,3,5-triol (I) with Ac2O and pyridine gives the triacetate (II), which is monodeacylated by means of porcine liver esterase at pH 7 to yield the diacetate (III). The silylation of the OH group of (III) with Tbdms-Cl , TEA and DMAP in dichloromethane affords the silyl ether (IV), which is submitted to desymmetrization by enzymatic hydrolysis with porcine liver esterase to provide the chiral cyclohexanol derivative (V). The oxidation of (V) by means of PCC in dichloromethane gives the chiral cyclohexanone (VI), which is finally treated with DBU in dichloromethane to yield the intermediate 5(S)-(Tbdms-O)-2-cyclohexenone (VII).
