【药物名称】
化学结构式(Chemical Structure):
参考文献No.803879
标题:Imidooxy anticonvulsants: Structural analogs with special emphasis on N-(benzyloxy)-2-azaspiro[4,4]nonane-1,3-dione
作者:Scott, K.R.; Nicholson, J.M.; Edafiogho, I.O.; Farrar, V.A.; Hinko, C.N.; Moore, J.A.
来源:Drugs Fut 1992,17(5),395

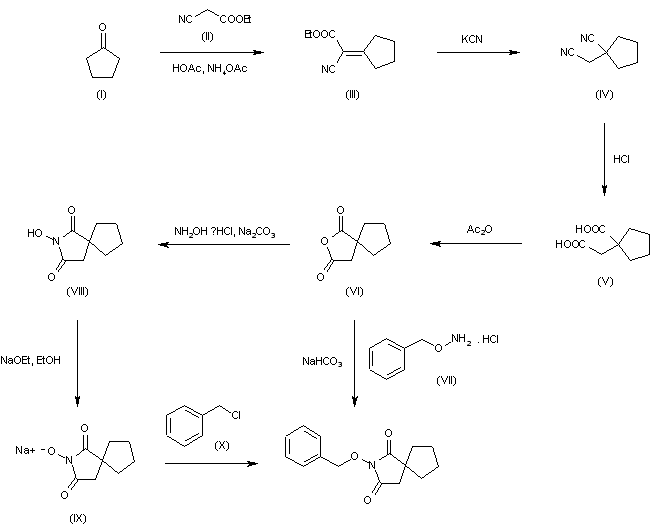

合成路线图解说明:

This compound can be obtained by two related ways: The reaction of cyclopentanone (I) with ethyl cyanoacetate (II) by means of HOAc/NH4OAc gives the cyclopentylidene derivative (III), which by reaction with KCN yields 1-(cyanomethyl)cyclopentanecarbonitrile (IV). The hydrolysis of (IV) with HCl affords the dicarboxylic acid (V), which by reaction with Ac2O affords the corresponding cyclic anhydride (VI). Finally, the reaction of (VI) with O-benzyl hydroxylamine hydrochloride and NaHCO3 provides the target compound. Alternatively, the cyclic anhydride (VI) is treated with hydroxylamine hydrochloride and Na2CO3 to gives the N-hydroxyimide (VIII), which is converted into its sodium salt (IX) by means of NaOEt in EtOH, and finally alkylated with benzyl chloride (X) to provide the target compound.
