The reaction of 8(S)-(bromomethyl)-4-hydroxy-2-methyl-1-oxo-6-(5,6,7-trimethoxyindol-2-ylcarbonyl)-1,2,3,6,7,8-hexahydrobenzo[1,2-b:4,3-b']dipyrrole-2-carboxylic acid methyl ester (I) with tert-butyl-dimethylsilyl chloride in DMF gives the corresponding O-silyl derivative (II), which is treated with camphorsulfonic acid (CPS) in hot chloroform to afford 8(S)-(bromomethyl)-4-hydroxy-2-methyl-6-(5,6,7-trimethoxyindol-2-ylcarbonyl)-3,6,7,8-tetrahydrobenzo[1,2-b:4,3-b']dipyrrole-1-carboxylic acid methyl ester (III). Finally, this compound is desilylated with tetrabutylammonium fluoride in THF and condensed with N-methylpiperazine (IV) and 4-nitrophenyl chloroformate by means of triethylamine in dichloromethane.

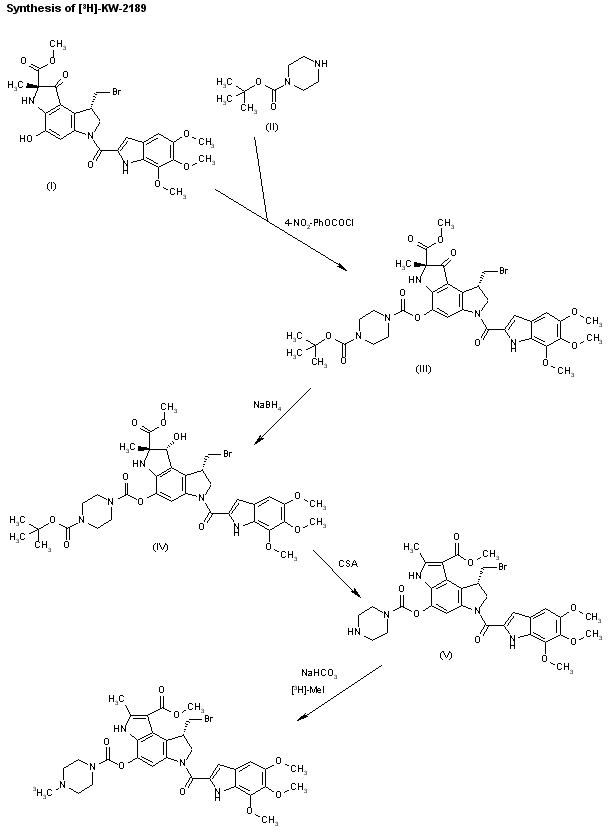

A synthesis of [3H]-KW-2189 has been published: The condensation of duocarmycin B2 (I) with tert-butoxycarbonylpiperazine (II) and 4-nitrophenyl chloroformate by means of triethylamine in dichloromethane gives the expected piperazinecarboxylate (III), which is reduced with NaBH4 in allyl alcohol to yield the hydroxy-derivative (IV). The treatment of (IV) with camphorsulfonic acid (CSA) in hot toluene affords the isomerized compound (V) along with simultaneous deprotection of the piperazine ring. Finally, compound (V) is methylated with tritiated methyl iodide and NaHCO3 in acetone/methanol.

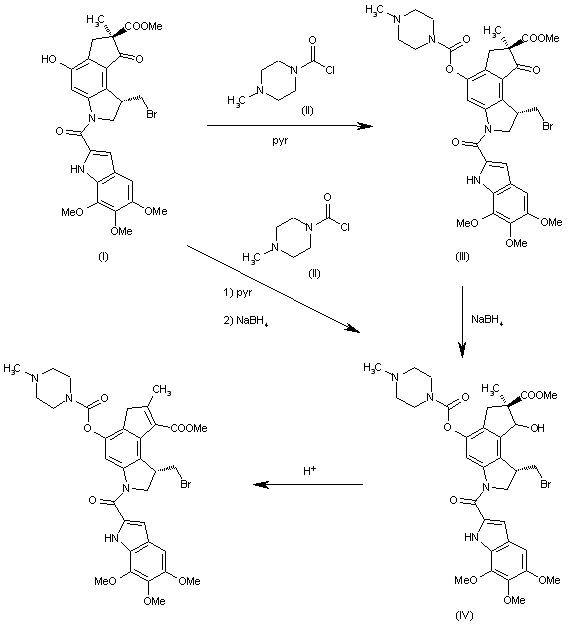

The acylation of duocarmicin B2 (I) with 4-methylpiperazin-1-ylcarbonyl chloride (II) by means of pyridine in dichloromethane gives the carbamate (III), which is reduced with NaBH4 in methanol as the better solvent, to yield the secondary alcohol (IV). Finally, this compound is submitted to a Wagner-Meerwein rearrangement in acidic medium. CSA, TsOH, MsOH, TfOH and BF3.Et2O have been tested with similar yields and hot 1,2-dichloroethane and toluene have been used as solvents.
The reaction of indoline (I) with propynoic acid methyl ester (II) in methanol gives the acrylic acid derivative (III), which is cyclized by means of Pd(OAc)2 in DMA to yield the pyrroloindole (IV). The reduction of the ester group of (IV) by means of BH3/Me2S in refluxing THF affords intermediate (V), which is treated with CCl4 and PPh3 to provide the chloromethyl derivative (VI). The O-deprotection in (VI) by means of HCOONH4 and Pd/C in THF gives the hydroxy compound (VII), which is N-deprotected by means of HCl in ethyl acetate to yield the pyrroloindole (VIII). The condensation of (VIII) with the known indole carboxylic acid (IX) by means of EDC in DMF affords the carboxamide (X), which is treated with phenyl isocyanate (XI) and TEA in THF to provide the target Carzelesin.
The intermediate pyrroloindole (VIII) was prepared from the previously reported (S)-aminoindoline (I). Michael addition of methyl propiolate (II) to aminoindoline (I) in MeOH provided the aminoacrylate (IIIa-b). Oxidative cyclization of (IIIa-b) was effected with Pd(OAc)2 in DMA to afford the 3-(methoxycarbonyl)pyrroloindole (IV). Simultaneous reduction of both the methyl ester and acetate groups of (IV) with borane-dimethyl sulfide complex gave rise to alcohol (V). Chlorination of (V) to give the chloromethyl derivative (VI) was carried out by treatment with triphenylphosphine and carbon tetrachloride. The O-benzyl protecting group of (VI) was subsequently removed by transfer hydrogenolysis yielding phenol (VII). The N-Boc group of (VII) was then cleaved under acidic conditions to furnish (VIII).
Condensation of 5-aminoindole-2-carboxylic acid ethyl ester (IX) with phosgene at very low temperature furnished the N,N'-bis(indolyl)urea (X). Subsequent basic hydrolysis of the ethyl ester groups of (X) gave diacid (XI). This was finally coupled with the intermediate pyrroloindole (VIII) by means of EDC to provide the title diamide.
The condensation of indoline (I) with methyl acetoacetate (II) by means of Ts-OH in refluxing benzene gives the adduct (III), which is cyclized by means of Pd(OAc)2 in hot DMA to yield the pyrroloindole (IV). The hydrolysis of the acetate group of (IV) by means of K2CO3 in methanol affords the hydroxymethyl compound (V), which is treated with CCl4 and PPh3 to provide the chloromethyl derivative (VI). The cleavage of the benzyl protecting group of (VI) by means of HCOONH4 and Pd/C in THF gives the hydroxy derivative (VII), which is N-deprotected by means of HCl in ethyl acetate to yield the intermediate (VIII). The condensation of (VIII) with 5,6,7-trimethoxy-1H-indole-2-carboxylic acid (IX) by means of EDC in DMF affords the carboxamide (X), which is treated with DBU in acetonitrile to provide the cyclopropapyrroloindole (XI). The reaction of (XI) with HBr in acetonitrile gives the bromomethyl derivative (XII), which is treated with 4-nitrophenyl chloroformate (XIII) to yield the active carbonate ester (XIV). Finally, this compound is treated with 1-methylpiperazine (XV) to provide the target Pibrozelesin.
