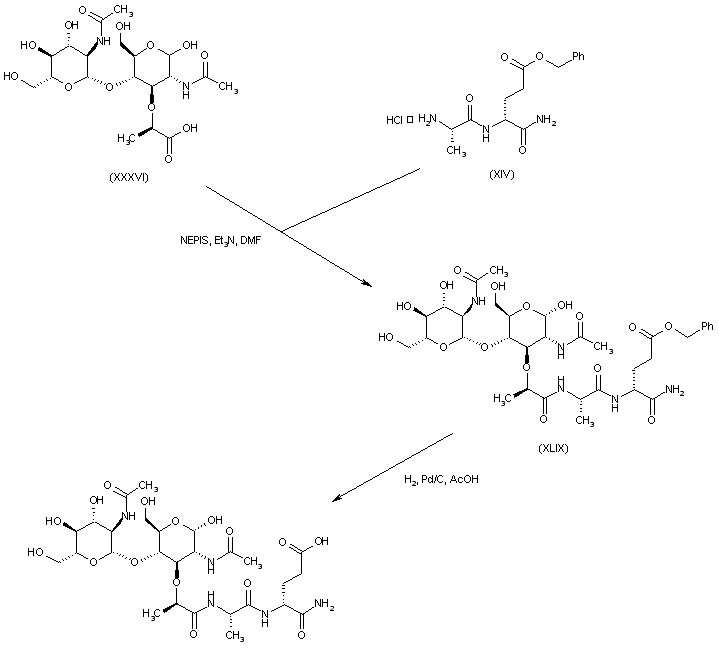

The disaccharide derivative (XXXVI) was isolated from the enzymatic hydrolysis of the cell walls obtained from cultures of Micrococcus lysodeikticus. Condensation of (XXXVI) with L-alanyl-D-isoglutamine benzyl ester (XIV), by means of N-ethyl-5-phenylisoxazolium-3'-sulfonate (NEPIS, Woodward's reagent K) as the coupling reagent, furnished amide (XLIX). The benzyl ester group of (XLIX) was finally cleaved by hydrogenolysis over Pd/C.

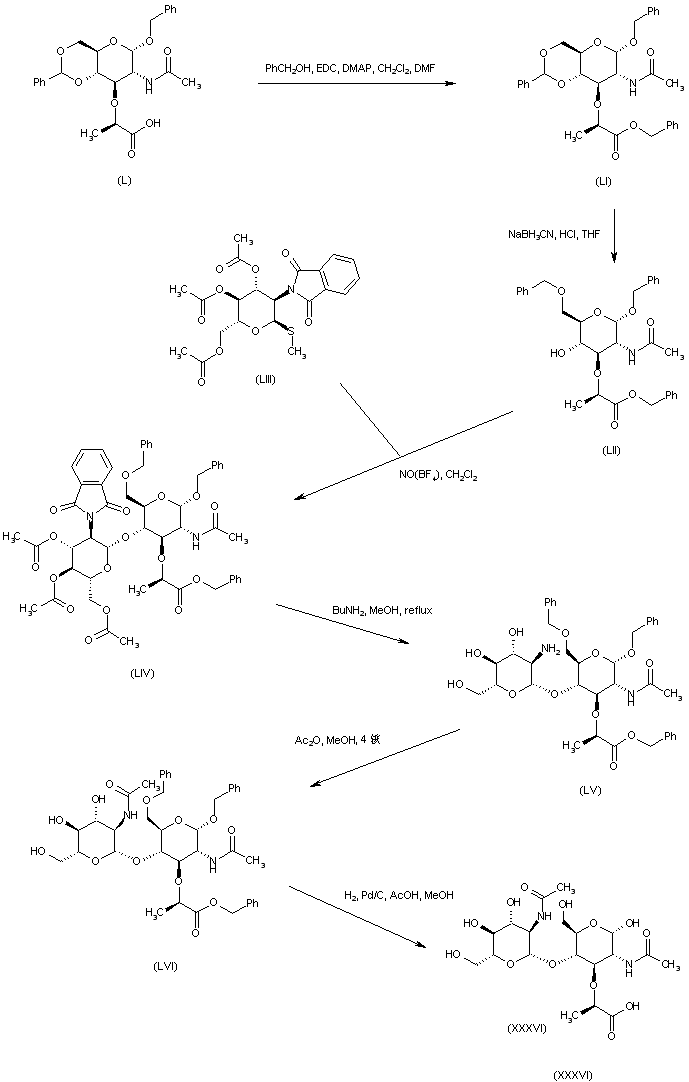

The precursor N-acetylglucosaminyl-N-acetylmuramic acid (XXXVI) was obtained by an alternative route. The protected glucosamine acid (L) was esterified with benzyl alcohol in the presence of EDC and DMAP to yield the benzyl ester (LI). The 4,6-O-benzylidene group of (LI) was then subjected to reductive cleavage with NaBH3CN, producing the 6-O-benzyl-4-hydroxy derivative (LII). Coupling of (LII) with the thioglucoside (LIII) was accomplished in the presence of nitrosyl tetrafluoroborate, to afford (LIV). Depththaloylation and hydrolysis of (LIV) with methanolic butylamine provided (LV). Then, amino group acetylation with Ac2O in MeOH gave amide (LVI). The O-benzyl protecting groups of (LVI) were then removed by catalytic hydrogenation, leading to precursor (XXXVI).

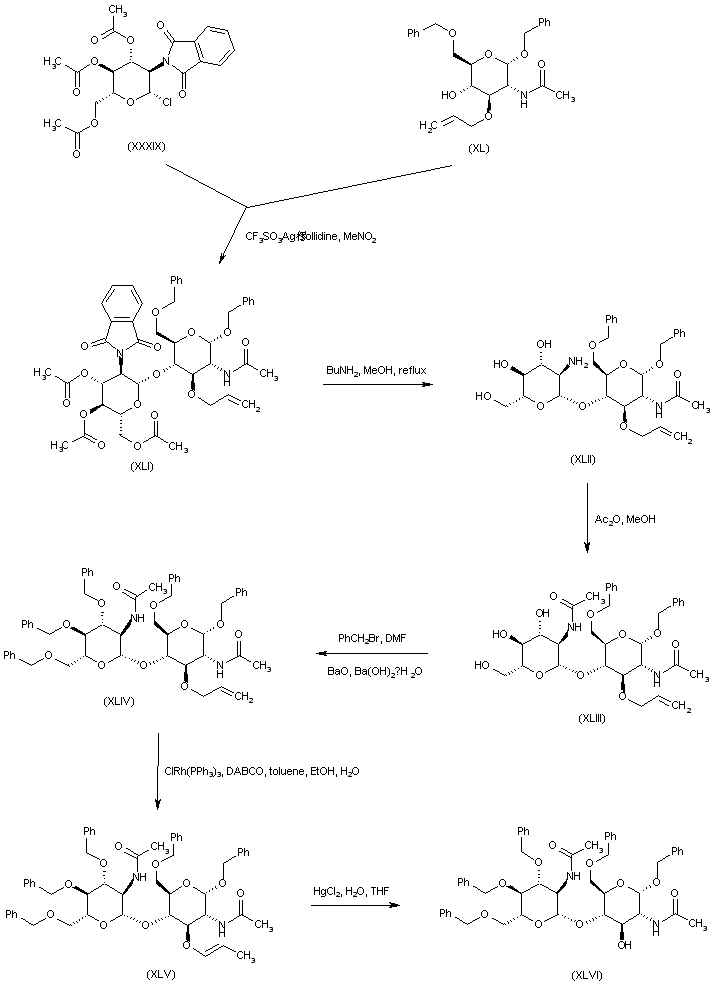

Condensation of the glucopyranosyl chloride (XXXIX) with the protected glucosamine (XL) in the presence of silver triflate-s-collidine complex gave disaccharide (XLI). Subsequent dephthaloylation and ester hydrolysis of (XLI) by means of n-butylamine in boiling MeOH furnished (XLII). Chemoselective acylation of the amino group of (XLII) with Ac2O in MeOH provided acetamide (XLIII). The free hydroxyl groups of (XLIII) were then protected as the corresponding benzyl ethers (XLIV) employing benzyl bromide in the presence of barium oxide and barium hydroxyde. The O-allyl group of (XLIV) was then isomerized in the presence of DABCO and rhodium catalyst to the 1-propenyl analogue (XLV), which was further hydrolyzed to alcohol (XLVI) by treatment with HgCl2.

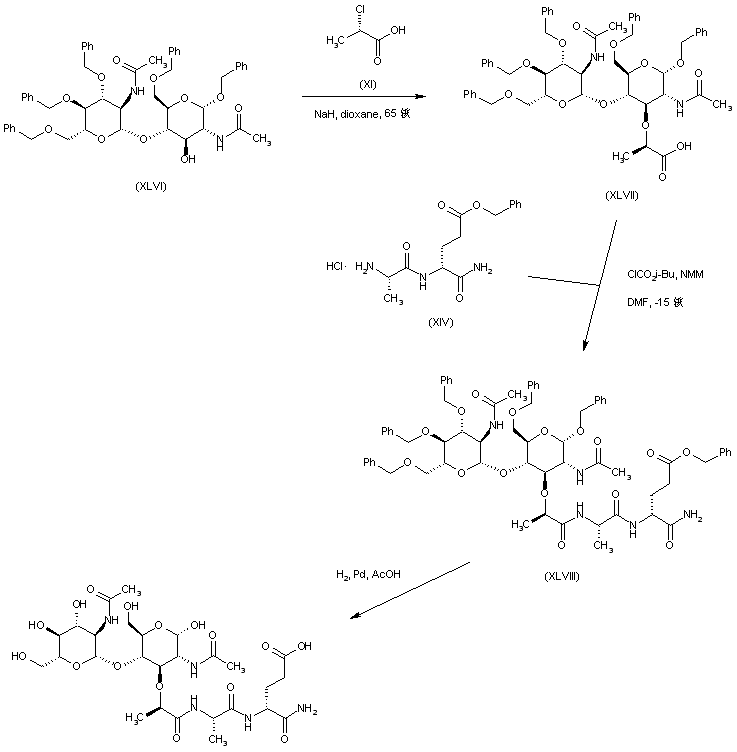

Alkylation of (XLVI) with (S)-2-chloropropionic acid (XI) provided the lactic acid derivative (XLVII). This was subsequently coupled with the dipeptide amide (XIV), via activation as the mixed anhydride with isobutyl chloroformate, to give the protected disaccharide dipeptide (XLVIII). Finally, hydrogenolysis of the O-benzyl protecting groups of (XLVIII) in the presence of palladium black led to the title compound.

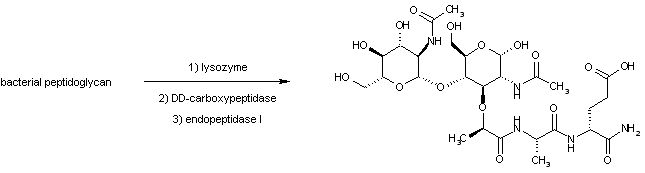

The title disaccharide-dipeptide was obtained by enzymatic degradation of the peptidoglycan of Actinomadura R39. The peptidoglycan was hydrolyzed successively by the 3 following enzymes: lysozyme, DD-carboxypeptidase and gamma-D-glutamyl-meso-diaminopimelate endopeptidase I.

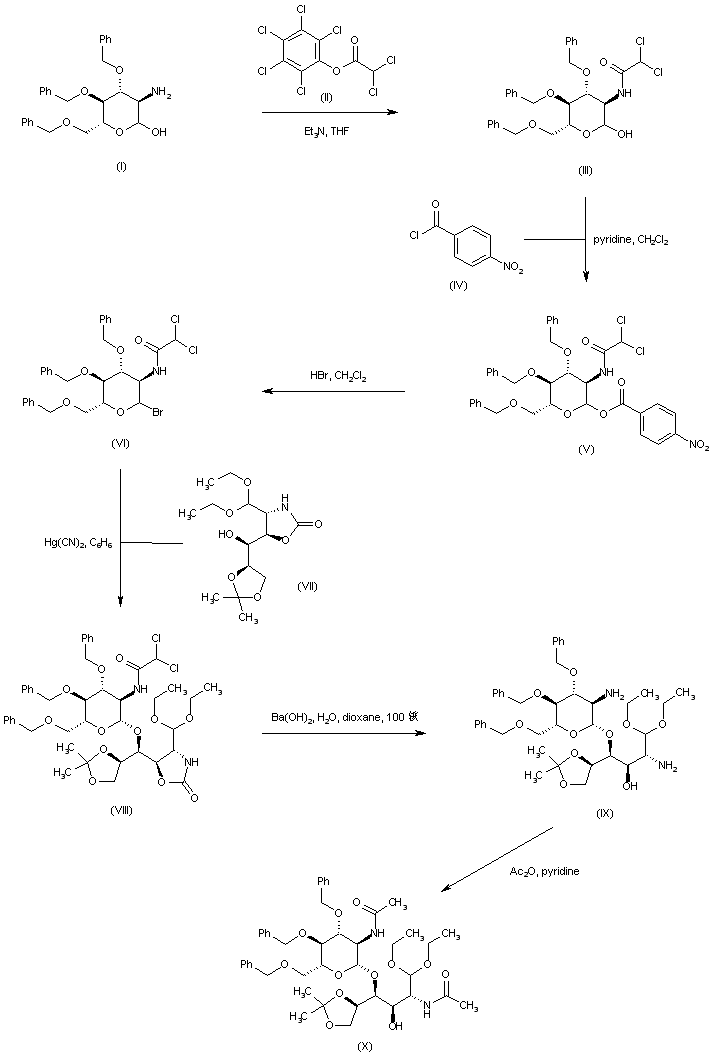

Acylation of 3,4,6-tri-O-benzyl-D-glucosamine (I) by means of pentachlorophenyl dichloroacetate (II) yielded the dichloroacetamide (III). Acylation of glucosamine (III) with acid chloride (IV) in pyridine/CH2Cl2 provided the 1-O-p-nitrobenzoyl derivative (V), which was treated with hydrogen bromide in CH2Cl2 to furnish glycosyl bromide (VI). Coupling of bromide (VI) with the glucosamine cyclic carbamate (VII) was performed in the presence of mercury(II) cyanide to afford the disaccharide (VIII). Alkaline hydrolysis of the dichloroacetamide and cyclic carbamate functions of (VIII) gave diamine (IX), which was subsequently acetylated to diamide (X) by means of acetic anhydride in pyridine.

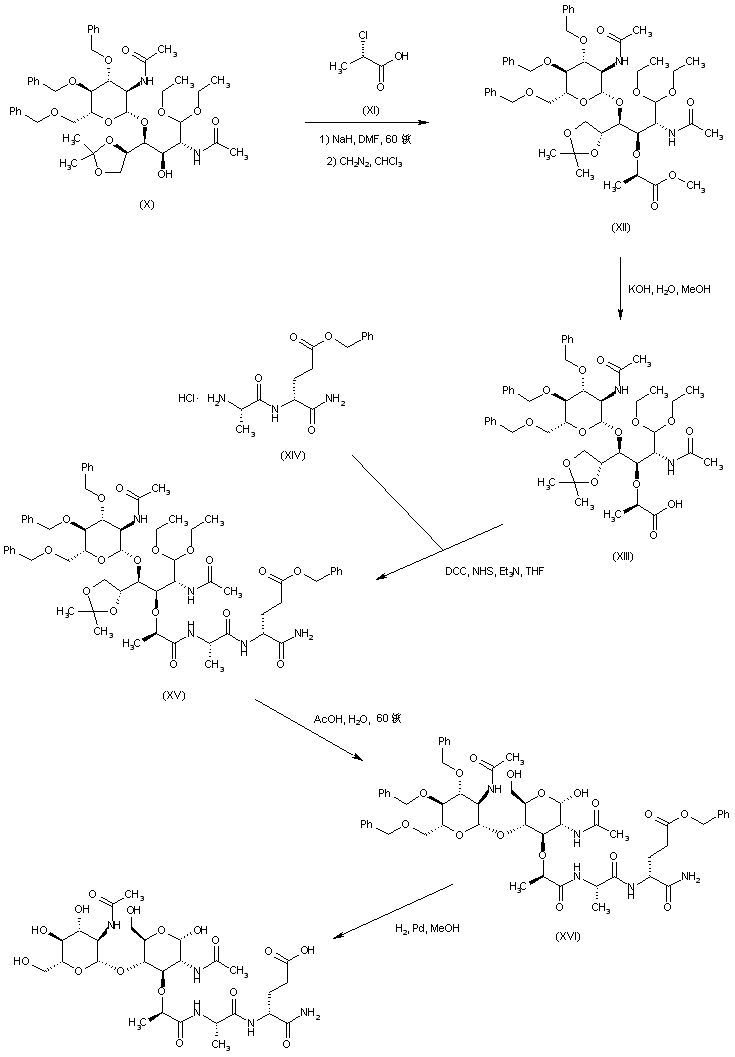

Alkylation of the sodium alkoxide of (X) with (S)-2-chloropropionic acid (XI), followed by esterification with diazomethane provided the methyl ester adduct (XII). Alkaline hydrolysis of ester (XII) with KOH yielded carboxylic acid (XIII), which was coupled with the dipeptide amide (XIV) to give the protected disaccharide dipeptide (XV). Subsequent acidic hydrolysis of the ketal functions of (XV) proceeded with concomitant cyclization to the pyranose form (XVI). The O-benzyl protecting groups of (XVI) were finally removed by catalytic hydrogenolysis in the presence of palladium black.

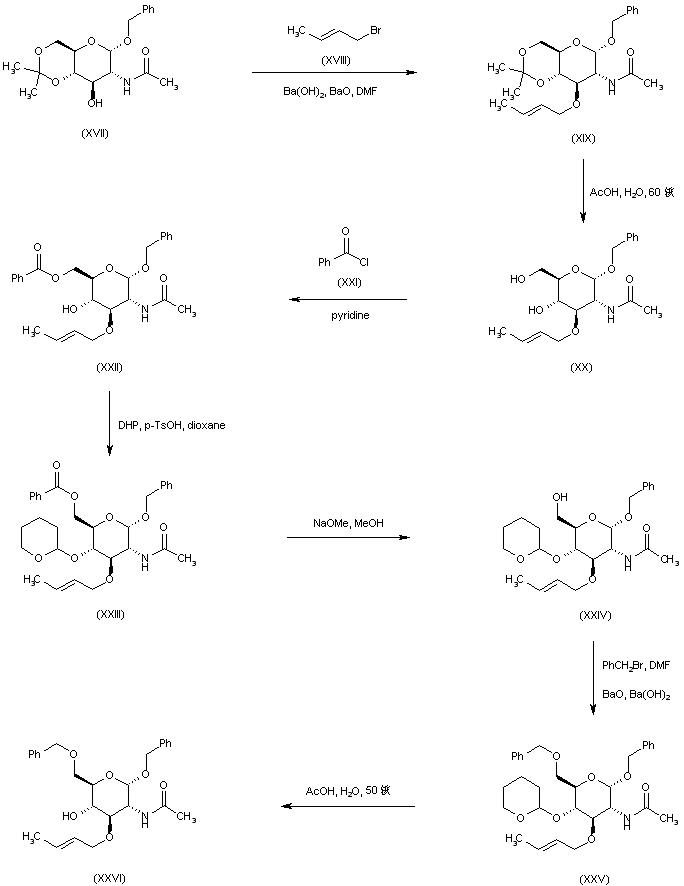

In an alternative route, 2-N-acetyl-4,6-O-isopropylidene-D-glucosamine benzyl pyranoside (XVII) was alkylated with 1-bromo-2-butene (XVIII) in the presence of barium oxide and barium hydroxide to produce the 3-O-crotyl ether (XIX). After acidic hydrolysis of the isopropylidene ketal (XIX), the resultant diol (XX) was selectively mono-acylated at the primary hydroxyl with benzoyl chloride (XXI) to afford the 6-benzoate ester (XXII). Protection of the 3-hydroxyl group of (XXII) by means of dihydropyran (DHP) and p-toluenesulfonic acid gave rise to the tetrahydropyranyl ether (XXIII). After methanolysis of the benzoate ester of (XXIII) in the presence of NaOMe, the resultant primary alcohol (XXIV) was protected as the benzyl ether (XXV). Subsequent hydrolysis of the tetrahydropyranyl group of (XXV) in aqueous HOAc furnished the protected glucosamine intermediate (XXVI).
Glycosylation of the protected glucosamine (XXVI) with the glucopyranooxazoline (XXVII) was effected in the presence of p-toluenesulfonic acid in dichloroethane to give the protected chitobioside derivative (XXVIII). Methanolysis of the acetate esters of (XXVIII), followed by protection of the resultant triol (XXIX) with acetone dimethylacetal, gave rise to the 4',6'-isopropylidene derivative (XXX). The 3'-hydroxyl group of (XXX) was then protected as the benzyl ether (XXXI) with benzyl bromide in the presence of Ba(OH)2 and BaO. Removal of the 2-butenyl group of (XXXI) to furnish (XXXII) was performed by means of potassium tert-butoxide in hot DMSO. Subsequent alkylation of (XXXII) with (S)-2-chloropropionic acid (XI) led to acid (XXXIII).
Coupling of acid (XXXIII) with the dipeptide amide (XIV) was conducted with DCC and NHS as the activating agents to give the lactoyl-dipeptide derivative (XXXIV). Hydrolytic removal of the isopropylidene ketal provided diol (XXXV). The benzyl groups of (XXXV) were finally removed by hydrogenolysis in the presence of Pd/C to afford the title compound.

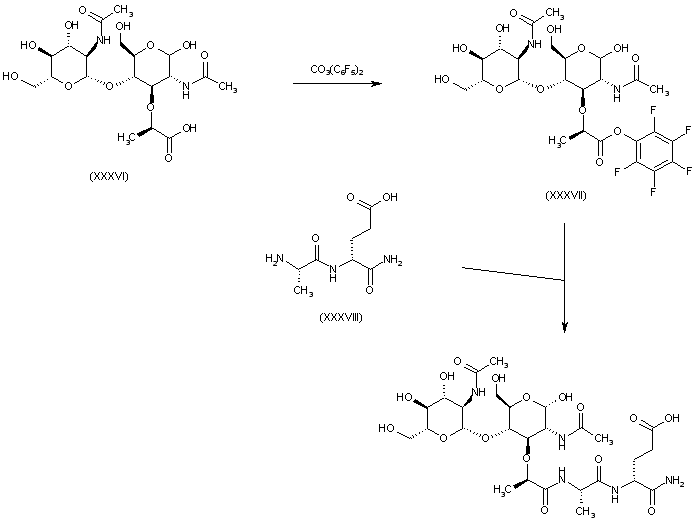

A more direct procedure was based on the activation of the unprotected disaccharide acid (XXXVI) as the pentafluorophenyl ester (XXXVII) by treatment with bis(pentafluorophenyl) carbonate. Active ester (XXXVII) was subsequently coupled with L-alanyl-D-isoglutamine (XXXVIII) to afford the corresponding amide.
