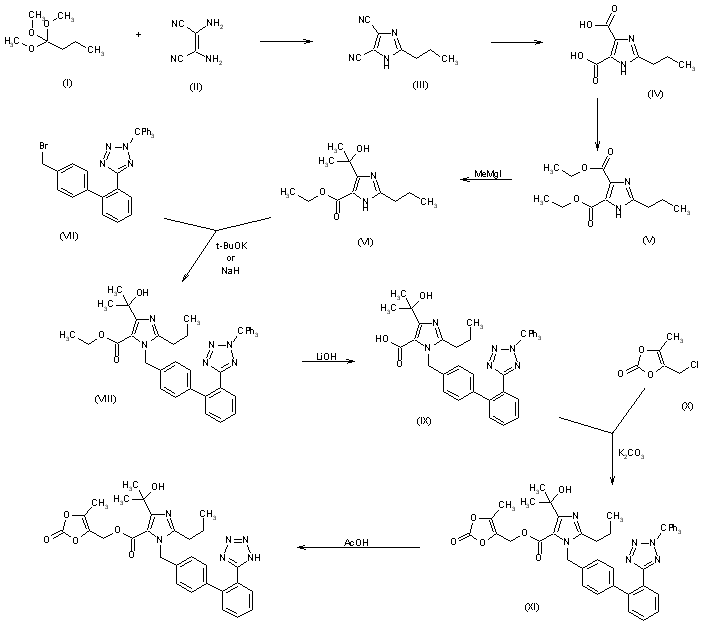

The cyclization of trimethyl orthobutyrate (I) with (Z)-2,3-diaminobutenedinitrile (II) gives 2-propylimidazole-4,5-dicarbonitrile (III), which is hydrolyzed with 6N HCl to the corresponding dicarboxylic acid (IV). The esterification of (IV) with ethanol/dry HCl yields the diethyl ester (V), which is treated with methylmagnesium iodide in ethyl ether/dichloromethane affording 4-(1-hydroxy-1-methylethyl)-2-propylimidazole-5-carboxylic acid ethyl ester (VI). The condensation of (VI) with 5-[4'-(bromomethyl)biphenyl-2-yl]-1-(triphenylmethyl)tetrazole (VII) by means of potassium tert-butoxide in dimethylacetamide (DMA) (1) or sodium hydride in DMF (2) gives 4-(1-hydroxy-1-methylethyl)-2-propyl-1-[2'-[1-(triphenylmethyl)-5-tetrazolyl]biphenyl-4-ylmethyl]imidazole-5-carboxylic acid ethyl ester (VIII), which is hydrolyzed with LiOH in dioxane/water to the corresponding free acid (IX). The esterification of (IX) with the chloromethyldioxole (X) by means of K2CO3 in DMA gives the desired ester (XI), which is finally deprotected with aqueous acetic acid.

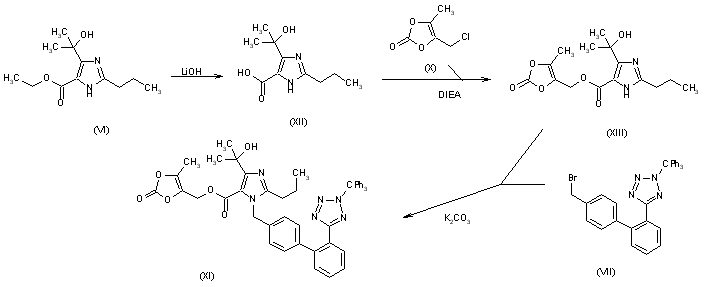

2) The hydrolysis of 4-(1-hydroxy-1-methylethyl)-2-propylimidazole-5-carboxylic acid ethyl ester (VI) with LiOH in water gives the corresponding free acid (XII), which is esterified with the chloromethyldioxole (X) by means of diisopropylethylamine (DIEA) yielding the expected ester (XIII). Finally, this compound is condensed with 5-[4-'(bromomethyl)biphenyl-2-yl]-1-(triphenylmethyl)tetrazole (VII) by means of potassium carbonate in DMA to afford the protected CS-866 (XI) already obtained.

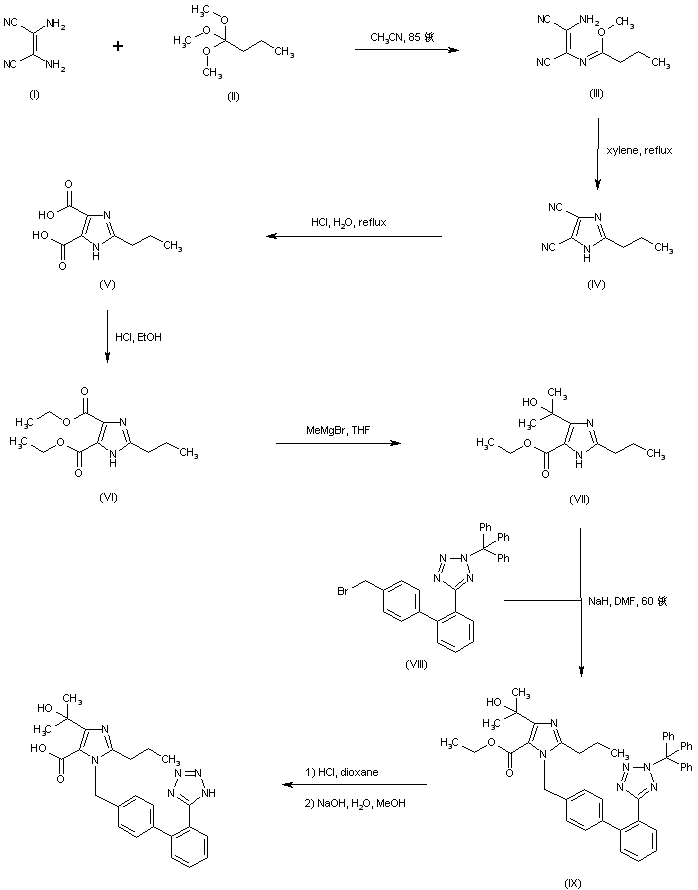

Condensation of diaminomaleonitrile (I) with trimethyl orthobutyrate (II) produced the imino ether (III), which was further cyclized to imidazole (IV) upon heating in xylene. Acid hydrolysis of the imidazole dinitrile (IV) led to diacid (V), and subsequent Fischer esterification with ethanolic HCl provided diester (VI). Regioselective addition of methylmagnesium bromide to diester (VI) furnished the imidazole carbinol (VII). Alkylation of imidazole (VII) with the biphenyl bromide (VIII) furnished the (biphenylylmethyl)imidazole (IX). Then, removal of the trityl protecting group of (IX) under acidic conditions, followed by alkaline ester hydrolysis gave rise to the title compound.
3) The amidation of 4'-methylbiphenyl-2-carboxylic acid (XIV) with tert-butylamine by means of oxalyl chloride in dichloromethane gives the corresponding tert-butylamide (XV), which is brominated with N-bromosuccinimide (NBS) and benzoyl peroxide in CCl4 yielding 4'-(bromomethyl)-N-(tert-butyl)biphenyl-2-carboxamide (XVI). The condensation of (XVI) with 4-(1-hydroxy-1-methylethyl)-2-propylimidazole-5-carboxylic acid ethyl ester (VI) by means of potassium tert-butoxide in DMA affords 1-[2'-(N-tert-butylcarbamoyl)biphenyl-4-ylmethyl]-4-(1-hydroxy-1-methylethyl)-2-propylimidazole-5-carboxylic acid ethyl ester (XVII), which by reaction with oxalyl chloride in dichloromethane is converted into 1-(2'-cyanobiphenyl-4-ylmethyl)-4-(1-hydroxy-1-methylethyl)-2-propylimidazole-5-carboxylic acid ethyl ester (XVIII). The cyclization of (XVIII) with tributyltin azide in toluene gives 4-(1-hydroxy-1-methylethyl)-2-propyl 1-[2'-(5-tetrazolyl)biphenyl-4-ylmethyl]imidazole-5-carboxylic acid ethyl ester (XIX), which is finally tritiated with trityl chloride in pyridine to afford 4-(1-hydroxy-1-methylethyl)-2-propyl-1-[2'-[1-(triphenylmethyl)-5-tetrazolyl]biphenyl-4-ylmethyl]imidazole-5-carboxylic acid ethyl ester (VIII), already obtained.
