【药物名称】J-106366

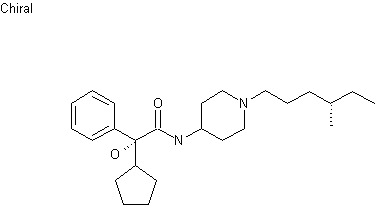

化学结构式(Chemical Structure):
参考文献No.31487
标题:1,4-Disubstd. piperidine derivs.
作者:Tsuchiya, Y.; Nomoto, T.; Ohsawa, H.; Kawakami, K.; Ohwaki, K.; Nishikibe, M. (Banyu Pharmaceutical Co., Ltd.)
来源:EP 0823423; US 5750540; WO 9633973
合成路线图解说明:

The chiral precursor (IV) was obtained by two alternative procedures. Addition of cyclopentylmagnesium bromide (II) to ethyl phenylglyoxylate (I) afforded the racemic hydroxyester (III). Basic hydrolysis of the ethyl ester group of (III) gave the corresponding carboxylic acid, which was resolved using cinchonidine.

合成路线图解说明:

An alternative asymmetric procedure consisted in the LDA-promoted addition of cyclopentenone (VI) to the chiral dioxolanone (V), followed by catalytic hydrogenation to furnish (VII). The dioxolane group of (VII) was then cleaved by basic hydrolysis yielding the target (R)-hydroxyacid (IV).

合成路线图解说明:

The alkylation of 4-(tert-butoxycarbonylamino)piperidine (VIII) with (S)-4- methylhexyl methanesulfonate (IX) provided the tertiary amine (X). Cleavage of the Boc protecting group of (X) gave aminopiperidine (XI), which was finally coupled with the chiral hydroxyacid (IV) by means of carbonyl diimidazole.

合成路线图解说明:

The chiral precursor (IV) was obtained by two alternative procedures. Addition of cyclopentylmagnesium bromide (II) to ethyl phenylglyoxylate (I) afforded the racemic hydroxyester (III). Basic hydrolysis of the ethyl ester group of (III) gave the corresponding carboxylic acid, which was resolved using cinchonidine.

合成路线图解说明:

An alternative asymmetric procedure consisted in the LDA-promoted addition of cyclopentenone (VI) to the chiral dioxolanone (V), followed by catalytic hydrogenation to furnish (VII). The dioxolane group of (VII) was then cleaved by basic hydrolysis yielding the target (R)-hydroxyacid (IV).

合成路线图解说明:

The alkylation of 4-(tert-butoxycarbonylamino)piperidine (VIII) with 5-bromo-2-methyl-2-pentene (IX) provided the tertiary amine (X). Cleavage of the Boc protecting group of (X) gave aminopiperidine (XI), which was finally coupled with the chiral hydroxyacid (IV) by means of carbonyl diimidazole.

参考文献No.482174
标题:Synthesis and structure-activity-relationships of 4-acetamidopiperidines as M3 selective antagonists
作者:Yamakawa, T.; et al.
来源:15th European Federation for Medicinal Chemistry International Symposium on Medicinal Chemistry (Sept 6 1998, Edinburgh) 1998,Abst P.294
合成路线图解说明:

The chiral precursor (IV) was obtained by two alternative procedures. Addition of cyclopentylmagnesium bromide (II) to ethyl phenylglyoxylate (I) afforded the racemic hydroxyester (III). Basic hydrolysis of the ethyl ester group of (III) gave the corresponding carboxylic acid, which was resolved using cinchonidine.

合成路线图解说明:

In a related procedure, hydroxyacid (IV) was coupled with 1-Boc-4-aminopiperidine (XII) employing EDC and HOBt to give amide (XIII). Acid cleavage of the Boc group of (XIII) yielded amine (XIV), that was finally alkylated with mesylate (IX).

合成路线图解说明:

The chiral precursor (IV) was obtained by two alternative procedures. Addition of cyclopentylmagnesium bromide (II) to ethyl phenylglyoxylate (I) afforded the racemic hydroxyester (III). Basic hydrolysis of the ethyl ester group of (III) gave the corresponding carboxylic acid, which was resolved using cinchonidine.

合成路线图解说明:

In a related procedure, hydroxyacid (IV) was coupled with 1-Boc-4-aminopiperidine (XII) employing EDC and HOBt to give amide (XIII). Acid cleavage of the Boc group of (XIII) yielded amine (XIV), that was finally alkylated with bromide (IX).
