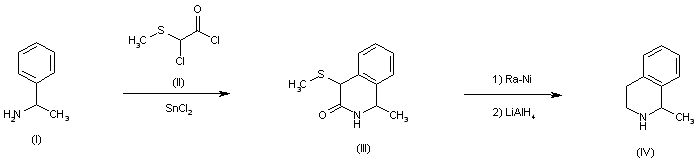

The intermediate tetrahydroisoquinoline (IV) has been prepared by two synthetic strategies. Condensation of alpha-methyl benzylamine (I) with alpha-chloro-alpha-(methylsulfanyl)acetyl chloride (II) in the presence of SnCl2 furnished the tetrahydroisoquinolinone (III). Reductive cleavage of the methylsulfanyl group of (III) employing Raney-Ni, followed by lactam reduction, provided intermediate (IV).

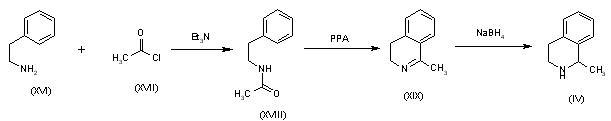

In a different method, cetylation of phenethylamine (XVI) with acetyl chloride (XVII) by means of Et3N in dichloromethane provides N-(2-phenylethyl)acetamide (XVIII), which is cyclized with hot polyphosphoric acid to afford 1-methyl-3,4-dihydroisoquinoline (XIX). Finally, compound (XIX) is reduced with sodium borohydride in EtOH.

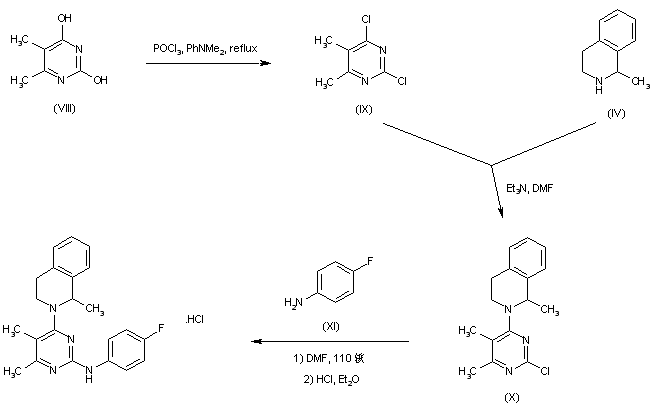

Chlorination of 5,6-dimethyl-2,4-dihydroxypyrimidine (VIII) using phosphorus oxychloride in the presence of N,N-dimethylaniline provided dichloropyrimidine (IX). The 4-chloro group of (IX) was then selectively displaced with tetrahydroisoquinoline (IV) to afford adduct (X). The title compound was then obtained by condensation of the 2-chloropyrimidine (X) with 4-fluoroaniline (XI), followed by conversion to the corresponding hydrochloride salt

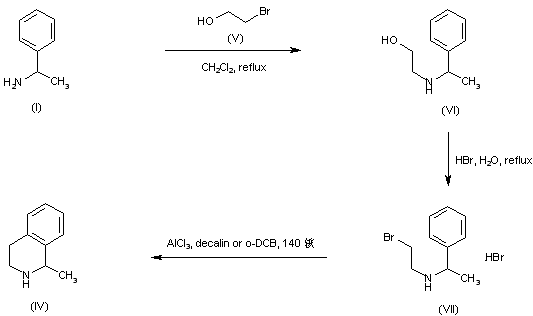

In a different method, amine (I) was alkylated with 2-bromoethanol (V) to give the N-(hydroxyethyl) amine (VI), which was further converted to bromo amine (VII) by treatment with concentrated HBr. Friedel-Crafts cyclization of (VII) upon heating in the presence of AlCl3 furnished tetrahydroisoquinoline (IV).

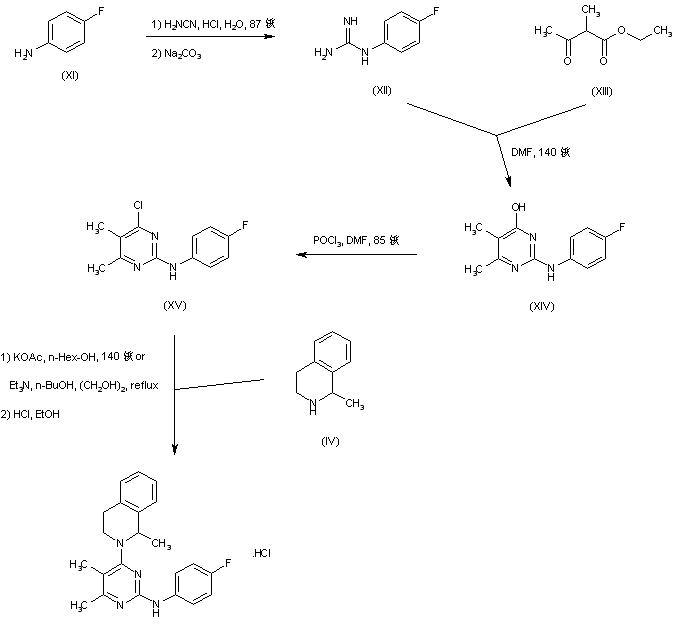

In an alternative procedure, 4-fluoroaniline (XI) was condensed with cyanamide under acidic conditions to afford the fluorophenyl guanidine (XII). Cyclization of guanidine (XII) with ethyl 2-methylacetoacetate (XIII) in hot DMF produced pyrimidine (XIV). After chlorination of (XIV) with POCl3, the resultant chloropyrimidine (XV) was condensed with tetrahydroisoquinoline (IV) in the presence of either KOAc or Et3N to furnish the title diaminopyrimidine.
