【药物名称】Z-15370A
化学结构式(Chemical Structure):
参考文献No.42054
标题:Phthalazine derivs. phosphodiesterase 4 inhibitors
作者:Norcini, G.; Morazzoni, G.; Leali, G.M.; Napoletano, M.; Grancini, G.; Pellacini, F. (Zambon Group SpA)
来源:EP 1097142; US 6329370; WO 0005218

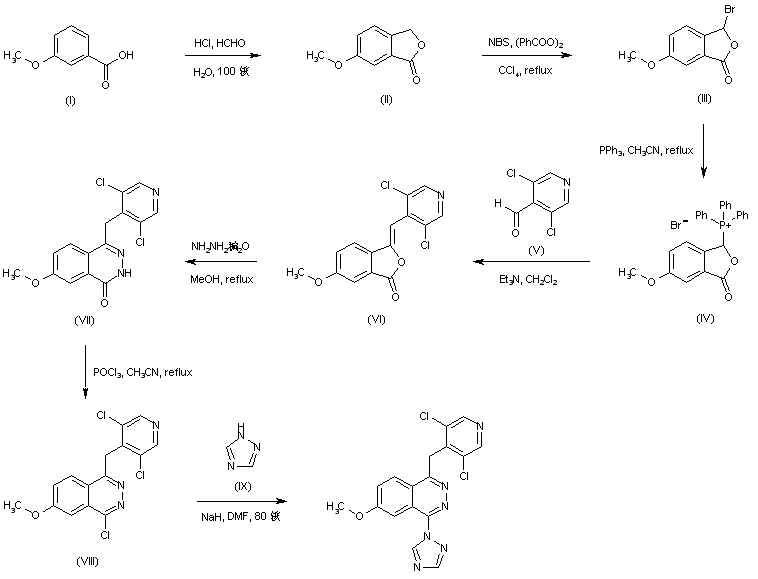

合成路线图解说明:

Friedel-Crafts hydroxymethylation of 3-methoxybenzoic acid (I) using aqueous formaldehyde and HCl gave rise to 6-methoxyisobenzofuran-1-one (II). After radical bromination of (II) with N-bromosuccinimide in the presence of benzoyl peroxide, the resulting 3-bromo derivative (III) was condensed with triphenyl phosphine to afford the phosphonium salt (IV). Wittig condensation of 3,5-dichloropyridine-4-carbaldehyde (V) with the phosphonium bromide (IV) provided the 3-(pyridylmethylene)isobenzofuranone (VI). Reaction of the enol lactone function of (VI) with hydrazine produced the phthalazinone derivative (VII), which was further converted to the 4-chlorophthalazine (VIII) upon treatment with POCl3. The 4-chloro group of (VIII) was finally displaced with the sodium salt of 1,2,4-triazole (IX) to give the title compound.

参考文献No.605032
标题:Phathalazine PDE4 inhibitors. Part 2: The synthesis and biological evaluation of 6-methoxy-1,4-disubstituted derivatives
作者:Napoletano, M.; Norcini, G.; Pellacini, F.; Marchini, F.; Morazzoni, G.; Ferlenga, P.; Pradella, L.
来源:Bioorg Med Chem Lett 2001,11(1),33
合成路线图解说明:

Friedel-Crafts hydroxymethylation of 3-methoxybenzoic acid (I) using aqueous formaldehyde and HCl gave rise to 6-methoxyisobenzofuran-1-one (II). After radical bromination of (II) with N-bromosuccinimide in the presence of benzoyl peroxide, the resulting 3-bromo derivative (III) was condensed with triphenyl phosphine to afford the phosphonium salt (IV). Wittig condensation of 3,5-dichloropyridine-4-carbaldehyde (V) with the phosphonium bromide (IV) provided the 3-(pyridylmethylene)isobenzofuranone (VI). Reaction of the enol lactone function of (VI) with hydrazine produced the phthalazinone derivative (VII), which was further converted to the 4-chlorophthalazine (VIII) upon treatment with POCl3. The 4-chloro group of (VIII) was finally displaced with the sodium salt of 1,2,4-triazole (IX) to give the title compound.
