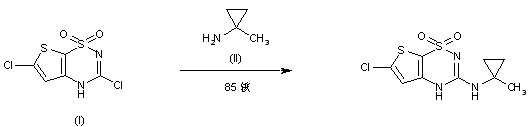

The known dichloro thienothiadiazine (I) was condensed with 1-methylcyclopropylamine (II) to produce the target 3-amino thienothiadiazine.
By cyclization of O-methylvalerolactam (I) with 3-(4-o-tolyl-1-piperazinyl) propionic acid hydrazide (II) in refluxing xylene, followed by a treatment with ethanolic HCl.
Acylation of (1-methylcyclopropyl)guanidine (IV) with 3-bromo-5-chlorothiophene-2-sulfonyl chloride (III) under Schotten-Baumann conditions afforded the sulfonyl guanidine (V). This was cyclized to the desired thienothiadiazine upon treatment with Cs2CO3 and Cu2O in boiling butanol.
In a closely related method, guanidine (IV) was sulfonylated with 3,5-dichlorothiophene-2-sulfonyl chloride (VI), and the resultant sulfonylguanidine (VII) was then cyclized in the presence of Cs2CO3 and Cu2O as above.
In a different method, (1-methylcyclopropyl)guanidine (I) is acylated by 3-bromo-5-chlorothiophene-2-sulfonyl chloride (II) to produce the sulfonyl guanidine (III). Intramolecular cyclization of (III) in the presence of Cu2O and Cs2CO3 leads to the title thienothiadiazine derivative. Similarly, acylation of guanidine (I) with 3,5-dichlorothiophene-2-sulfonyl chloride (IV) provides sulfonyl guanidine (V), which is then cyclized in the presence of Cu2O and Cs2CO3.
In an alternative method, sulfonylation of N-isopropylguanidine (V) with 2,5-dichlorothiophene-3-sulfonyl chloride (IV) produced the sulfonyl guanidine (VI). This was then cyclized to the title compound by treatment with copper bronze and potassium carbonate in boiling DMF.
A related strategy was based in the lithiation of either sulfonylguanidines (V) or (VII) with BuLi, followed by treatment with trimethyl borate to afford the intermediate methyl boronate (VIII) which upon acidic quenching led to the boronic acid (IX). Cyclization of (IX) to the title bicyclic derivative was then accomplished by treatment with cupric acetate in pyridine.
