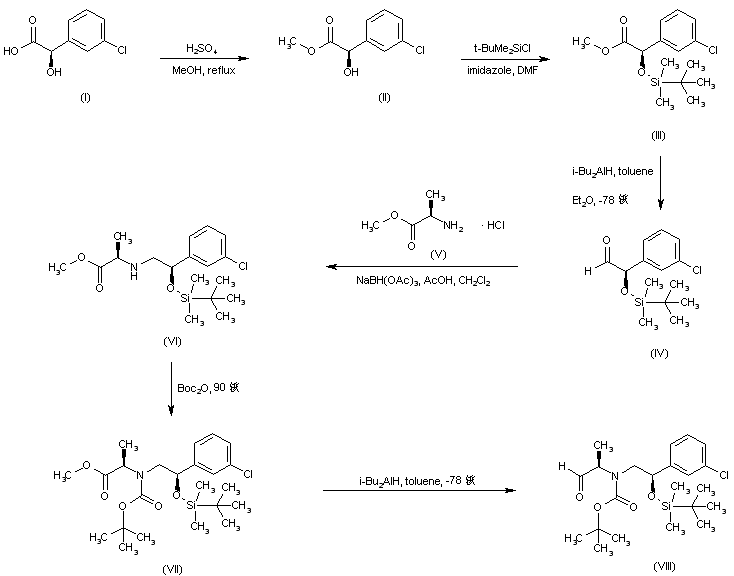

Esterification of (R)-3-chloromandelic acid (I) with MeOH and H2SO4 to yield ether (II), followed by hydroxyl group silylation using t-butyldimethylsilyl chloride and imidazole furnished (III). Reduction of the ester function of (III) by means of DIBAL produced aldehyde (IV), which was subjected to reductive amination with D-alanine methyl ester (V) to produce amino ester (VI). After protection of the amino group of (VI) as the N-Boc derivative (VII), further DIBAL reduction of the ester group afforded aldehyde (VIII).

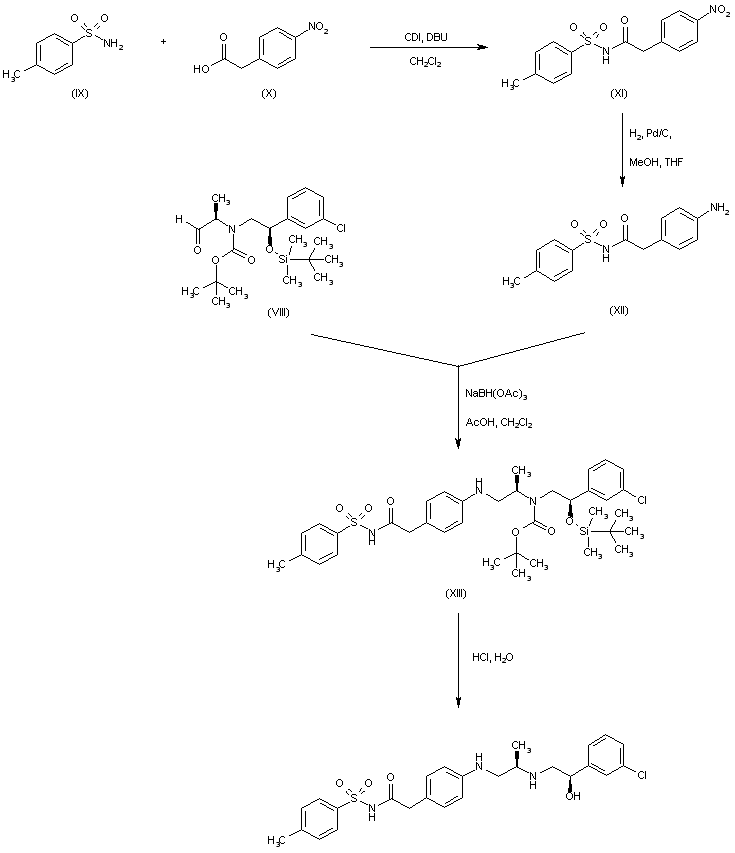

Coupling of p-nitrophenylacetic acid (IX) with p-toluenesulfonamide (X) using CDI provided the N-acyl sulfonamide (XI). The nitro group of (XI) was then reduced by catalytic hydrogenation to furnish aniline (XII). Reductive condensation of aniline (XII) with aldehyde (VIII) in the presence of NaBH(OAc)3 gave rise to amine (XIII). Finally, simultaneous removal of the O-silyl and N-Boc protecting groups of (XIII) was accomplished by treatment with 4 N aqueous HCl.
