【药物名称】AD-101, SCH-350581

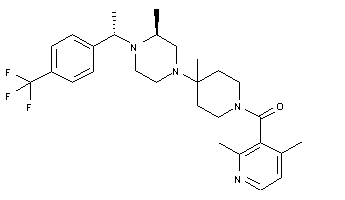

化学结构式(Chemical Structure):
参考文献No.45666
标题:Piperazine derivs. useful as CCR5 antagonists
作者:Labroli, M.A.; Smith, E.M.; Baroudy, B.M.; Gilbert, E.; Tagat, J.R.; Josien, H.B.; Steensma, R.; Laughlin, M.A.; Miller, M.W.; Clader, J.W.; McKittrick, B.A.; Neustadt, B.R.; Palani, A.; McCombie, S.W.; Vice, S.F. (Schering Corp.)
来源:EP 1175401; WO 0066558
合成路线图解说明:

Enantioselective reduction of 4-trifluoromethylacetophenone (I) with borane-methyl sulfide complex in the presence of the chiral oxaborolidine (II) provided the (R)-alcohol (III) in high enantiomeric excess. Treatment of (III) with methanesulfonyl chloride and Et3N yielded the corresponding mesylate (IV). Displacement of the mesylate group of (IV) with the Boc-protected piperazine (V) produced the desired (S,S)-alpha-methylbenzyl piperazine (VI) as the major isomer. Separation from minor amounts of the (R,S)-diastereomer was effected by flash chromatography. After acid cleavage of the Boc protecting group of (VI), the resultant piperazine (VII) was subjected to a modified Strecker reaction with N-Boc-piperidone (VIII) and diethylaluminum cyanide, yielding amino nitrile (IX). A methyl group was then introduced at the 4-position of the piperidine (IX) by displacement of the cyano group with methylmagnesium bromide to yield (X). Subsequent acidic Boc group cleavage in (X) gave piperidine (XI). This was finally coupled with 2,4-dimethylnicotinic acid N-oxide (XII) to furnish the title compound.

合成路线图解说明:

The enantioselective reduction of 4-(trifluoromethyl)acetophenone (I) with BH3/Me2S in the presence of the chiral borane (II) gives the (R) alcohol (III), which is treated with MsCl and TEA to yield the corresponding mesylate (IV). The displacement of the Ms group of (V) by means of the 1-Boc-3(S)-methylpiperazine (V) produced the protected (S,S)-alpha-methylbenzyl piperazine (VI) as the major isomer, which is purified by flash chromatography. After cleavage of the Boc group of (VI) with TFA in dichloromethane, the resulting piperazine (VII) is subjected to a modified Strecker reaction with 1-Boc-piperidin-4-one (VIII) and diethylaluminum cyanide to yield the aminonitrile (IX). A methyl group is then introduced by displacement of the cyano group of (IX) by means of MeMgBr to afford the protected 4-methylpiperidine derivative (X). Subsequent acidic Boc group cleavage in (X) with TFA provides the piperidine (XI), which is finally condensed with 2,4-dimethylpyridine-3-carboxylic acid (XII) by means of EDC and HOBT to furnish the target amide (1-3).

参考文献No.56181
标题:Piperazine derivs. useful as CCR5 antagonists
作者:Neustadt, B.R.; Smith, E.M.; McKittrick, B.A.; McCombie, S.W.; Tagat, J.R.; Clader, J.W.; Vice, S.F.; Baroudy, B.M.; Josien, H.B.; Miller, M.W.; Palani, A.; Steensma, R.; Gilbert, E.; Labroli, M.A. (Schering Corp.)
来源:US 6391865
合成路线图解说明:

Enantioselective reduction of 4-trifluoromethylacetophenone (I) with borane-methyl sulfide complex in the presence of the chiral oxaborolidine (II) provided the (R)-alcohol (III) in high enantiomeric excess. Treatment of (III) with methanesulfonyl chloride and Et3N yielded the corresponding mesylate (IV). Displacement of the mesylate group of (IV) with the Boc-protected piperazine (V) produced the desired (S,S)-alpha-methylbenzyl piperazine (VI) as the major isomer. Separation from minor amounts of the (R,S)-diastereomer was effected by flash chromatography. After acid cleavage of the Boc protecting group of (VI), the resultant piperazine (VII) was subjected to a modified Strecker reaction with N-Boc-piperidone (VIII) and diethylaluminum cyanide, yielding amino nitrile (IX). A methyl group was then introduced at the 4-position of the piperidine (IX) by displacement of the cyano group with methylmagnesium bromide to yield (X). Subsequent acidic Boc group cleavage in (X) gave piperidine (XI). This was finally coupled with 2,4-dimethylnicotinic acid N-oxide (XII) to furnish the title compound.

合成路线图解说明:

The enantioselective reduction of 4-(trifluoromethyl)acetophenone (I) with BH3/Me2S in the presence of the chiral borane (II) gives the (R) alcohol (III), which is treated with MsCl and TEA to yield the corresponding mesylate (IV). The displacement of the Ms group of (V) by means of the 1-Boc-3(S)-methylpiperazine (V) produced the protected (S,S)-alpha-methylbenzyl piperazine (VI) as the major isomer, which is purified by flash chromatography. After cleavage of the Boc group of (VI) with TFA in dichloromethane, the resulting piperazine (VII) is subjected to a modified Strecker reaction with 1-Boc-piperidin-4-one (VIII) and diethylaluminum cyanide to yield the aminonitrile (IX). A methyl group is then introduced by displacement of the cyano group of (IX) by means of MeMgBr to afford the protected 4-methylpiperidine derivative (X). Subsequent acidic Boc group cleavage in (X) with TFA provides the piperidine (XI), which is finally condensed with 2,4-dimethylpyridine-3-carboxylic acid (XII) by means of EDC and HOBT to furnish the target amide (1-3).

合成路线图解说明:

The reaction of 4-(trifluoromethyl)styrene (I) with mCPBA in dichloromethane gives the epoxide (II), which is treated with MeONa in methanol to yield the benzyl alcohol (III). The reaction of (III) with MsCl and TEA affords the mesylate (IV), which is condensed with the monoprotected piperazine (V) in refluxing acetonitrile to provide a diastereomeric mixture of compounds (VI) + (VII) that is resolved by flash chromatography. The desired isomer (VII) is deprotected by means of HCl or TFA to give piperazine (VIII), which is condensed with N-Boc-4-piperidone (IX) with simultaneous alkylation by means of Ti(OiPr)4 and Et2Al-CN in refluxing dichloromethane to yield the intermediate (X). The reaction of (X) with MeMgBr in THF affords the methylated compound (XI), which is deprotected by means of TFA to provide the substituted piperidine derivative (XII). Finally, this compound is acylated by means of 4,6-dimethylpyrimidine-5-carbonyl chloride (XIII) and aqueous NaOH in dichloromethane to provide the target compound. (1-3)

参考文献No.635452
标题:Piperazine-based CCR5 antagonists as HIV-1 inhibitors. II. Discovery of 1-[(2,4-dimethyl-3-pyridinyl)carbonyl]-4-methyl-4-[3(S)-methyl-4[1(S)-[4-(trifluoromethyl)phenyl]ethyl]-1-piperazinyl]-piperidine N1-oxide (Sch-350634), an orally bioavailable, potent
作者:Tagat, J.R.; Steensma, R.W.; McCombie, S.W.; Nazareno, D.V.; Lin, S.-I.; Neustadt, B.R.; Cox, K.; Xu, S.; Wojcik, L.; Murray, M.G.; Vantuno, N.; Baroudy, B.M.; Strizki, J.M.
来源:J Med Chem 2001,44(21),3343
合成路线图解说明:

Enantioselective reduction of 4-trifluoromethylacetophenone (I) with borane-methyl sulfide complex in the presence of the chiral oxaborolidine (II) provided the (R)-alcohol (III) in high enantiomeric excess. Treatment of (III) with methanesulfonyl chloride and Et3N yielded the corresponding mesylate (IV). Displacement of the mesylate group of (IV) with the Boc-protected piperazine (V) produced the desired (S,S)-alpha-methylbenzyl piperazine (VI) as the major isomer. Separation from minor amounts of the (R,S)-diastereomer was effected by flash chromatography. After acid cleavage of the Boc protecting group of (VI), the resultant piperazine (VII) was subjected to a modified Strecker reaction with N-Boc-piperidone (VIII) and diethylaluminum cyanide, yielding amino nitrile (IX). A methyl group was then introduced at the 4-position of the piperidine (IX) by displacement of the cyano group with methylmagnesium bromide to yield (X). Subsequent acidic Boc group cleavage in (X) gave piperidine (XI). This was finally coupled with 2,4-dimethylnicotinic acid N-oxide (XII) to furnish the title compound.

合成路线图解说明:

The enantioselective reduction of 4-(trifluoromethyl)acetophenone (I) with BH3/Me2S in the presence of the chiral borane (II) gives the (R) alcohol (III), which is treated with MsCl and TEA to yield the corresponding mesylate (IV). The displacement of the Ms group of (V) by means of the 1-Boc-3(S)-methylpiperazine (V) produced the protected (S,S)-alpha-methylbenzyl piperazine (VI) as the major isomer, which is purified by flash chromatography. After cleavage of the Boc group of (VI) with TFA in dichloromethane, the resulting piperazine (VII) is subjected to a modified Strecker reaction with 1-Boc-piperidin-4-one (VIII) and diethylaluminum cyanide to yield the aminonitrile (IX). A methyl group is then introduced by displacement of the cyano group of (IX) by means of MeMgBr to afford the protected 4-methylpiperidine derivative (X). Subsequent acidic Boc group cleavage in (X) with TFA provides the piperidine (XI), which is finally condensed with 2,4-dimethylpyridine-3-carboxylic acid (XII) by means of EDC and HOBT to furnish the target amide (1-3).
