Drospirenone

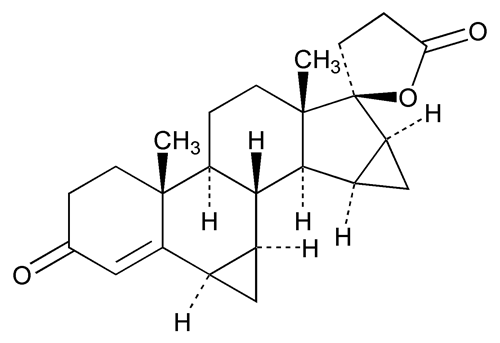

C24H30O3 366.49
(6R,7R,8R,9S,10R,13S,14S,15S,16S,17S)-1,3¢,4¢,6,6a,7,8,9,10, 11,12,13,14,15,15a,16-Hexadecahydro-10,13-dimethylspiro-[17H-dicyclopropa[6,7:15,16]cyclopenta[a]phenanthrene-17,2¢(5¢H)-furan]-3,5¢(2H)-dione;
17-Hydroxy-6
,7:15,16-dimethylene-3-oxo-17
-pregn-4-ene-21-carboxylic acid,
-lactone
[67392-87-4].
Solution A:
Water
(droe spye' re none).
+'&img=../../images/v35300/cas-67392-87-4.gif&casNumber=67392-87-4&usp=35&nf=30&chemicalStructureImage=true&ID='+parent.myID,600,500);)
C24H30O3 366.49
(6R,7R,8R,9S,10R,13S,14S,15S,16S,17S)-1,3¢,4¢,6,6a,7,8,9,10, 11,12,13,14,15,15a,16-Hexadecahydro-10,13-dimethylspiro-[17H-dicyclopropa[6,7:15,16]cyclopenta[a]phenanthrene-17,2¢(5¢H)-furan]-3,5¢(2H)-dione;
17-Hydroxy-6
,7:15,16-dimethylene-3-oxo-17 -pregn-4-ene-21-carboxylic acid, -lactone
[67392-87-4].DEFINITION
Drospirenone contains NLT 98.0% and NMT 102.0% of C24H30O3, calculated on the anhydrous and solvent-free basis.
IDENTIFICATION
• B.
The retention time of the major peak of the Sample solution corresponds to that of the Standard solution, as obtained in the Assay.
ASSAY
Change to read:
• Procedure
Solution A:
Water
Solution B:
Acetonitrile
Mobile phase:
See Table 1.
Table 1
| Time (min) |
Solution A (%) |
Solution B (%) |
|---|---|---|
| 0 | 63 | 37 |
| 2.0 | 63 | 37 |
| 16.0 | 52 | 48 |
| 23.0 | 52 | 48 |
| 31.0 | 20 | 80 |
| 39.0 | 20 | 80 |
| 39.1 | 63 | 37 |
| 49.0 | 63 | 37 |
Diluent:
Acetonitrile and water (1:1)
System suitability solution:
60 µg/mL of USP Drospirenone RS and 60 µg/mL of USP Drospirenone Related Compound A RS in Diluent
Standard solution:
0.6 mg/mL of USP Drospirenone RS in Diluent
Sample solution:
0.6 mg/mL of Drospirenone in Diluent
Chromatographic system
Mode:
LC
Detector:
UV 245 nm
Column:
4.6-mm × 25-cm; 3-µm packing L1
Column temperature:
35
Flow rate:
1 mL/min
Injection size:
10 µL
System suitability
Samples:
System suitability solution and Standard solution
Suitability requirements
Resolution:
NLT 5.0 between drospirenone and drospirenone related compound A, System suitability solution
Tailing factor:
Between 0.8 and 1.5, Standard solution
Relative standard deviation:
NMT 2.0%, Standard solution
Analysis
USP35
Samples:
Standard solution and Sample solution
Calculate the percentage of the labeled quantity of drospirenone (C24H30O3) in the portion of Drospirenone taken:
Result = (rU/rS) × (CS/CU) × 100
| rU | = | = peak response from the Sample solution |
| rS | = | = peak response from the Standard solution |
| CS | = | = concentration of USP Drospirenone RS in the Standard solution (mg/mL) |
| CU | = | = nominal concentration of drospirenone in the Sample solution (mg/mL) |
USP35
Acceptance criteria:
NLT 98.0%–102.0% on the anhydrous and solvent-free basis
IMPURITIES
Organic Impurities
• Procedure 1: Limit of 1,2-Dimethoxyethane and Diisopropyl Ether (if present)
Standard solution:
0.1 mg/mL of 1,2-dimethoxyethane and 0.05 mg/mL of diisopropyl ether in dimethylformamide
Sample solution:
50 mg/mL of Drospirenone in dimethylformamide
Chromatographic system
Mode:
GC
Detector:
Flame ionization
Column:
0.25-mm × 30-m; 1.4-µm coating of phase G43
Temperature
Injector:
160
Detector:
250
Column:
See Table 2.
Table 2
| Initial Temperature ( ) |
Temperature Ramp ( /min) |
Final Temperature ( ) |
Hold Time at Final Temperature |
|---|---|---|---|
| 40 | 0 | 40 | 10 |
| 40 | 5 | 70 | 0 |
| 70 | 30 | 220 | 0 |
Carrier gas:
Helium
Flow rate:
32 ± 8 cm/s. [Note—For pressure-controlled systems, a column pressure of about 130 kPa is necessary. ]
Injector type:
Headspace
Sample volume:
2.0 mL/vial
Vial treatment:
Maintain at 80 for 60 min before injection.
for 60 min before injection.
System suitability
Sample:
Standard solution
[Note—The relative retention times for diisopropyl ether and 1,2-dimethoxyethane are about 0.6 and 1.0, respectively. ]
Suitability requirements
Relative standard deviation:
NMT 4.0%
Analysis
Samples:
Standard solution and Sample solution
Calculate the percentage of 1,2-dimethoxyethane and diisopropyl ether in the portion of Drospirenone taken:
Result = (rU/rS) × (CS/CU) × 100
| rU | = | = peak response of 1,2-dimethoxyethane or diisopropyl ether from the Sample solution |
| rS | = | = peak response of 1,2-dimethoxyethane or diisopropyl ether from the Standard solution |
| CS | = | = concentration of 1,2-dimethoxyethane or diisopropyl ether in the Standard solution (mg/mL) |
| CU | = | = concentration of Drospirenone in the Sample solution (mg/mL) |
Acceptance criteria
Individual impurities:
NMT 0.2% of 1,2-dimethoxyethane and NMT 0.1% of diisopropyl ether
• Procedure 2
Solution A:
Water
Solution B:
Acetonitrile
Mobile phase:
See Table 3.
Table 3
| Time (min) |
Solution A (%) |
Solution B (%) |
|---|---|---|
| 0 | 63 | 37 |
| 2.0 | 63 | 37 |
| 16.0 | 52 | 48 |
| 23.0 | 52 | 48 |
| 31.0 | 20 | 80 |
| 39.0 | 20 | 80 |
| 39.1 | 63 | 37 |
| 49.0 | 63 | 37 |
Diluent:
Acetonitrile and water (1:1)
System suitability solution:
60 µg/mL of USP Drospirenone RS and 60 µg/mL of USP Drospirenone Related Compound A RS in Diluent
Standard solution:
0.6 µg/mL of USP Drospirenone RS in Diluent
Sample solution:
0.6 mg/mL of Drospirenone in Diluent
Chromatographic system
Mode:
LC
Detector:
UV 195 nm and 245 nm
Column:
4.6-mm × 25-cm; 3-µm packing L1
Column temperature:
35 ± 5
Flow rate:
1 mL/min
Injection size:
10 µL
System suitability
Samples:
System suitability solution and Standard solution
Suitability requirements
Resolution:
NLT 5.0 between drospirenone and drospirenone related compound A, System suitability solution
Tailing factor:
Between 0.8 and 1.5, Standard solution
Relative standard deviation:
NMT 2.0%, Standard solution
Analysis
Samples:
Standard solution and Sample solution
Calculate the percentage of each impurity in the portion of Drospirenone taken:
Result = (rU/rS) × (CS/CU) × (1/F) × 100
| rU | = | = peak response of each individual impurity from the Sample solution |
| rS | = | = peak response of drospirenone from the Standard solution |
| CS | = | = concentration of USP Drospirenone RS in the Standard solution (µg/mL) |
| CU | = | = concentration of Drospirenone in the Sample solution (µg/mL) |
| F | = | = relative response factor for each individual impurity (see Table 4) |
[Note—The percentage of hydroxydrospirenone is calculated at 195 nm. ]
Acceptance criteria
[Note—Disregard any peaks that are less than 0.05% of the drospirenone peak. ]
Individual impurities:
See Table 4.
Table 4
| Name | Relative Retention Time |
Relative Response Factor |
Acceptance Criteria, NMT (%) |
|---|---|---|---|
| 7-Hydroxymethyl drospirenone at 245 nma | 0.43 | 1.9 | 0.1 |
| 5-Hydroxydrospirenone at 195 nmb | 0.57 | 0.57 | 0.1 |
| 17-Keto drospirenone at 245 nmc | 0.77 | 1.2 | 0.1 |
| Drospirenone at 245 and 195 nm | 1.00 | — | — |
| Drospirenone 6-ene at 245 nmd | 1.04 | 0.30 | 0.1 |
| Drospirenone related compound A at 245 nme | 1.11 | 1.0 | 0.1 |
| 6,7-Epidrospirenone at 245 nmf | 1.14 | 1.3 | 0.1 |
| 6,7-Desmethylene drospirenone at 245 nmg | 1.18 | 2.2 | 0.1 |
| 15-Methyl drospirenone at 245 nmh | 1.34 | 0.99 | 0.1 |
| 7-Chloromethyl drospirenone at 245 nmi | 1.38 | 1.6 | 0.1 |
| 7-Chloromethyl 17-epidrospirenone at 245 nmj | 1.51 | 1.9 | 0.1 |
| 7-Hydroxymethyl 3,5(6)-diene drospirenone at 245 nmk | 1.55 | 1.4 | 0.1 |
| Any unspecified impurity at 245 nm | — | 1.0 | 0.1 |
| Total impurities | — | — | 0.4 |
|
a
17-Hydroxy-7
-hydroxymethyl-15,16-methylene-3-oxo-17-pregn-4-ene-21-carboxylic acid, -lactone.
b
5
,17-Dihydroxy-6,7:15,16-dimethylene-17-pregnan-21-carboxylic acid, -lactone.
c
6
,7:15,16-Dimethyleneandrost-4-ene-3,17-dione.
d
17-Hydroxy-15
,16-methylene-3-oxo-17-pregn-4,6-diene-21-carboxylic acid, -lactone.
e
17-Hydroxy-6
,7:15,16-dimethylene-3-oxo-17-pregn-4-ene-21-carboxylic acid, -lactone; 17-epidrospirenone.
f
17-Hydroxy-6
,7:15,16-dimethylene-3-oxo-17-pregn-4-ene-21-carboxylic acid, -lactone.
g
17-Hydroxy-15
,16-methylene-3-oxo-17-pregn-4-ene-21-carboxylic acid, -lactone.
h
17-Hydroxy-15
-methyl-6,7-methylene-3-oxo-17-pregn-4-ene-21-carboxylic acid, -lactone.
i
17-Hydroxy-7
-chloromethyl-15,16-methylene-3-oxo-17-pregn-4-ene-21-carboxylic acid, -lactone.
j
17-Hydroxy-7
-chloromethyl-15,16-methylene-3-oxo-17-pregn-4-ene-21-carboxylic acid, -lactone.
k
17-Hydroxy-7
-hydroxymethyl-15,16-methylene-17-pregn-3,5(6)-diene-21-carboxylic acid, -lactone.
|
|||
SPECIFIC TESTS
• Optical Rotation, Specific Rotation
781S
781S
Sample solution:
10 mg/mL in methanol
Acceptance criteria:
187 to 193 at 20 on the anhydrous and solvent-free basis
187 to 193 at 20 on the anhydrous and solvent-free basis
• Melting Range or Temperature, Class 1 741:
198–203. [Note—Dry over silica gel for NLT 24 h before testing. ]
741:
198–203. [Note—Dry over silica gel for NLT 24 h before testing. ]
• Water Determination, Method I 921:
NMT 0.2%
921:
NMT 0.2%
ADDITIONAL REQUIREMENTS
• Packaging and Storage:
Preserve in tight containers, and store at controlled room temperature.
• USP Reference Standards 11
11
USP Drospirenone RS
') + '&img=../../images/v35300/cas-67392-87-4.gif',600,500);)
USP Drospirenone Related Compound A RS
17-Hydroxy-6,7:15,16-dimethylene-3-oxo-17-pregn-4-ene-21-carboxylic acid, -lactone.
C24H30O3 366.49
17-Hydroxy-6
,7:15,16-dimethylene-3-oxo-17-pregn-4-ene-21-carboxylic acid, -lactone.
C24H30O3 366.49
